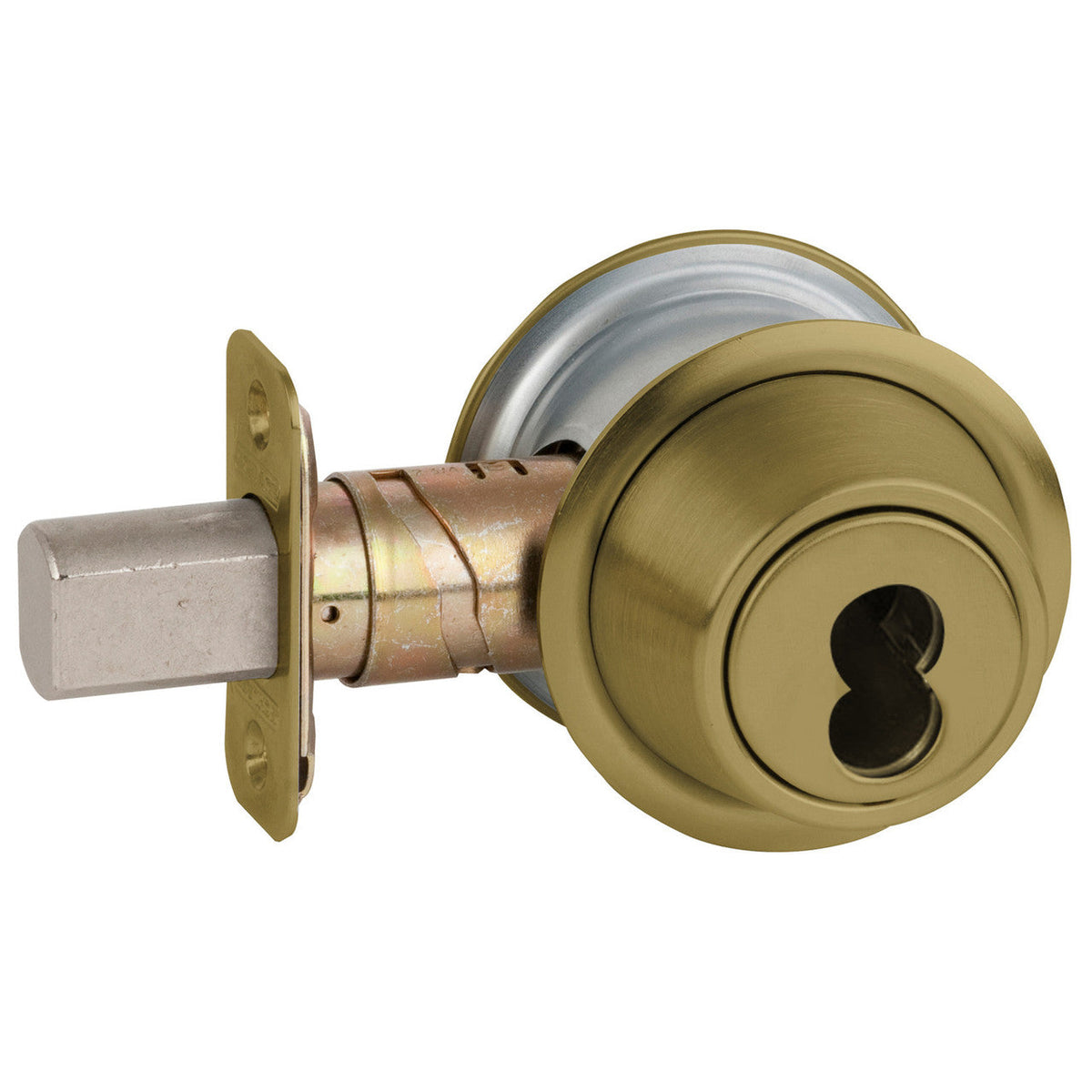

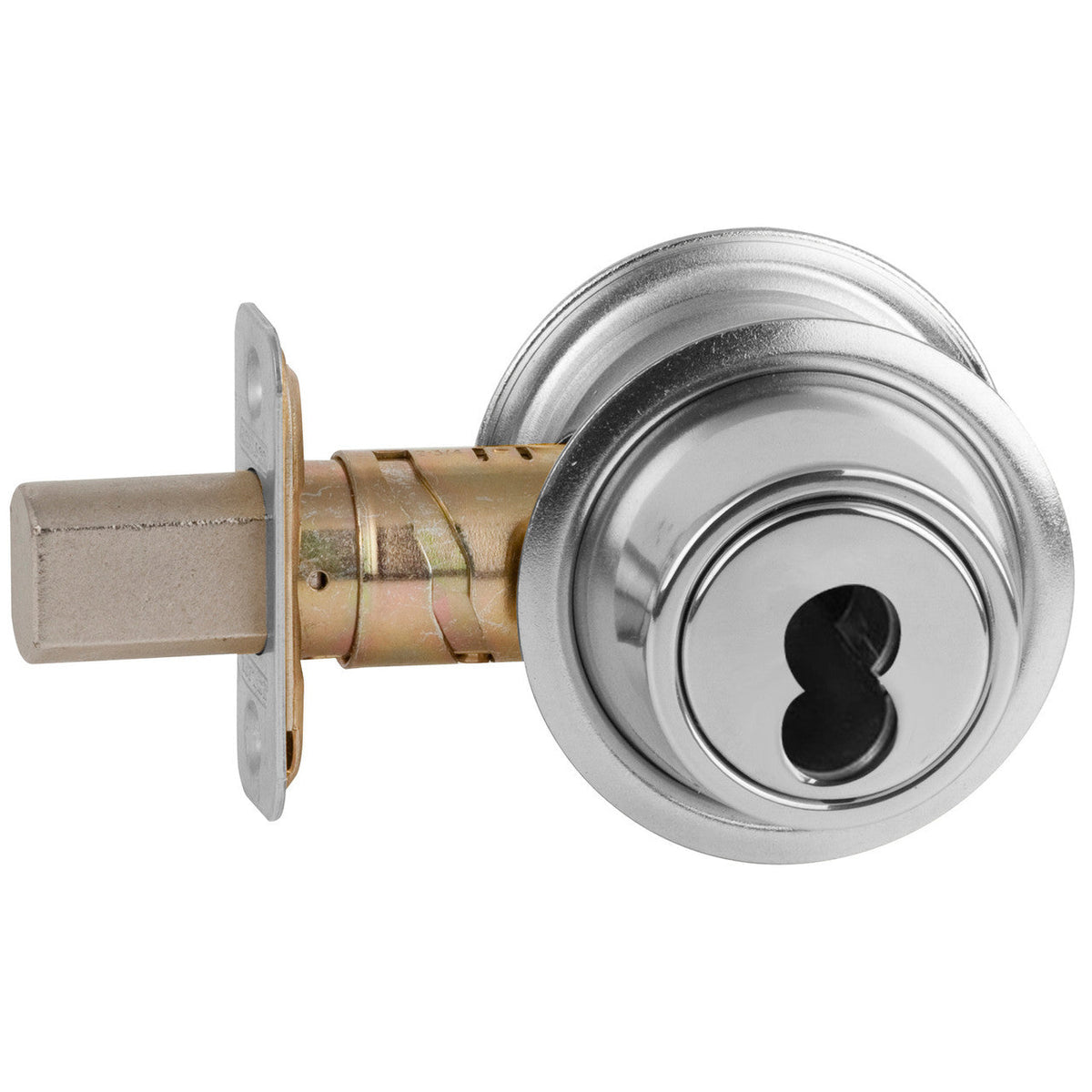

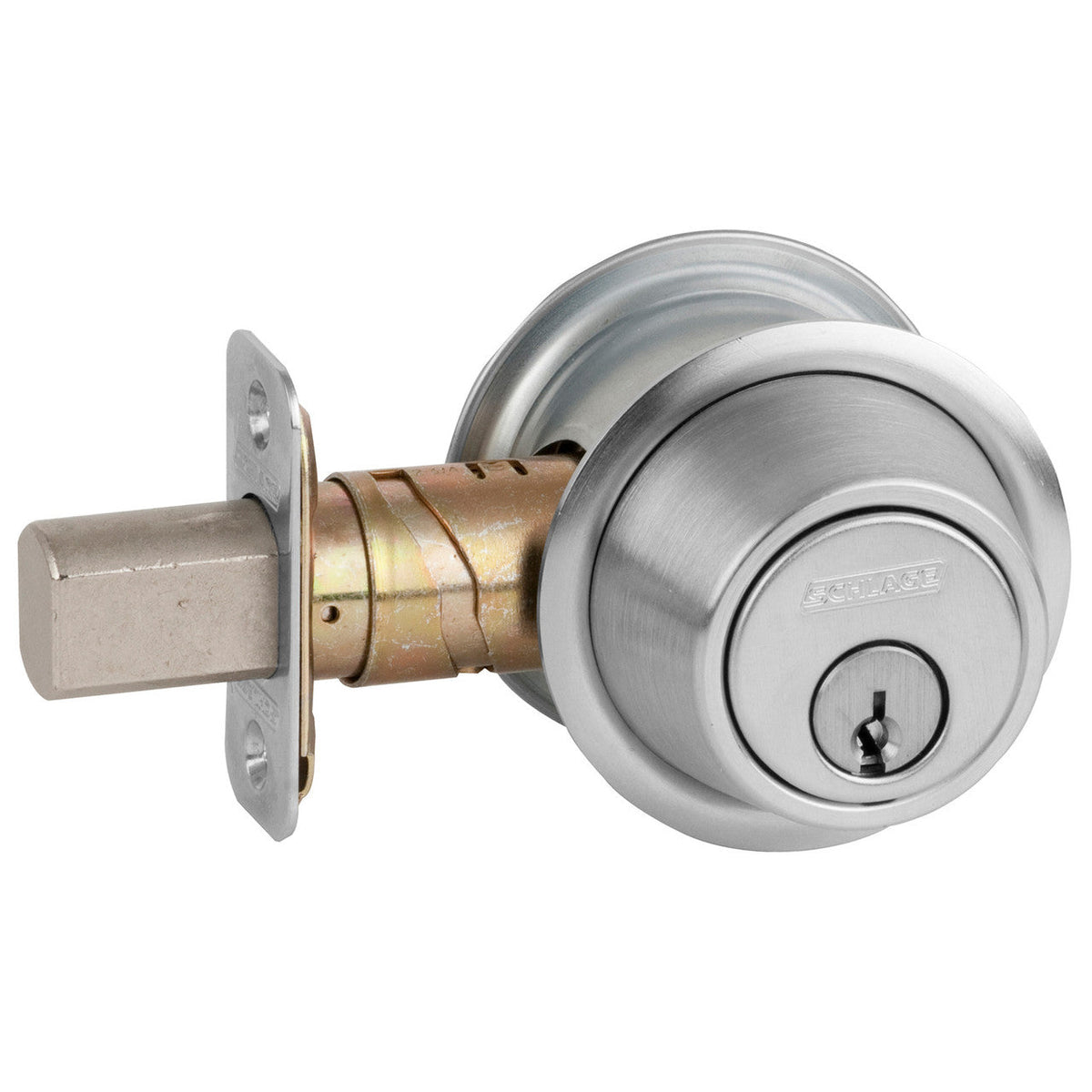

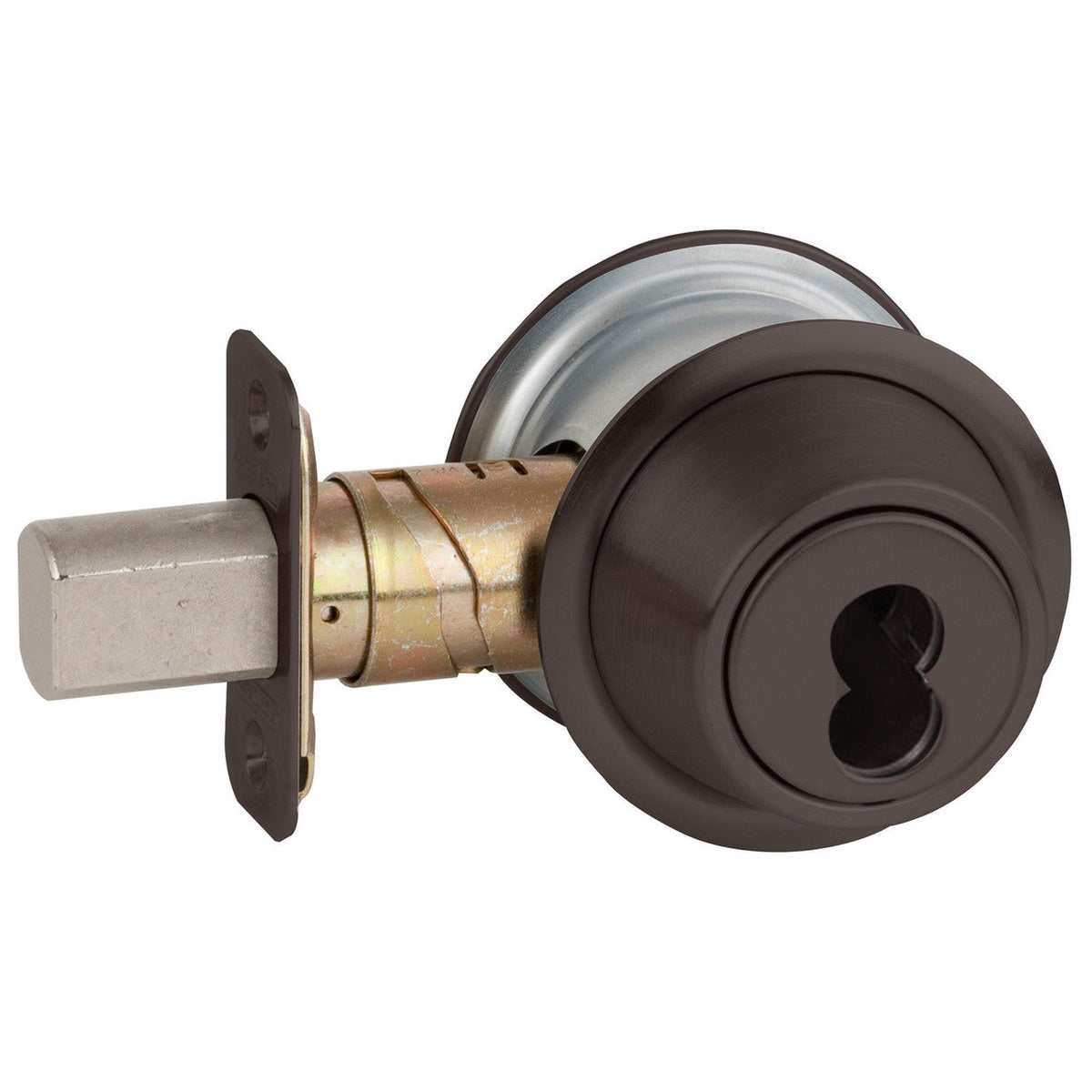

Schlage B560 Single Cylinder Deadbolt B500 Series Grade 2

B500 Series Grade 2 Deadbolt Offered in 7 functions and made to last, B500 deadbolts feature optional fire-rating and status indication. The metal dustbox anchors into the door frame using 3" screws and are orderable in any Schlage cylinder format. Overview Top selling Schlage Grade 2 B Series deadbolts rival many competitive Grade 1 products for strength, durability and versatility. These mid-price point deadbolts are offered in 10 finishes, 7 functions and 3 cylinder formats. Their design includes anti-saw, anti-pry, anti-wrench and other security features not common to Grade 2 deadbolts. They are easy to install and can meet any security need. Features & Benefits Security Meets or exceeds ANSI/BHMA Grade 2 operational and security standards Solid zinc bolt with hardened steel anti-saw pin Upgradeable to UL 10C 3-hour fire rated options (as auxiliary locks) except B562 & B571 Metal dust box uses 3" screws to anchor deep into wood door frame to protect against kick-in attacks Free spinning, cylinder collar resists wrenching and prying Removeable security shield protects against manipulation of the cylinder driver through the door Patented Everest 29™ S123 keyway is provided standard which prohibits unauthorized key duplication Restricted geographically exclusive Primus upgraded security options offer advanced key control and exceptional physical security UL 437 listed option resists drilling and physical attack on the cylinder Aesthetics Ten available finishes with option for antimicrobial coating Suites with nearly all Schlage and Von Duprin products Functional Features Seven functions include keyless, single cylinder and double cylinder options Adjustable backset has a lock-in-place helix design Built to Last Every Schlage lock undergoes intensive testing to determine its ANSI grade level including: cycle, resistance, door impact, warped door and bolt strength tests Functions Functions with 180-degree visibility indicator trim options are marked (*). See B500 Series Grade 2 Indication Trim for details. Non-keyed functions B572 Door bolt with coin turn (*) B580 Door bolt (ANSI E0192) B581 Door bolt with trim (ANSI E01112) (*) Keyed functions Single cylinder B560 Single cylinder deadbolt (ANSI E0152) (*) B561 Cylinder x blank plate deadbolt (ANSI E0162) (*) B563 Classroom deadbolt (ANSI E0172) (*) Double cylinder B562 Double cylinder deadbolt - cylinder x cylinder (ANSI E0142) (*) Specifications Material Deadbolt: Zinc with hardened steel anti-saw pin insert Trim ring: Stamped trim ring over solid zinc spin ring Cylinder: Solid brass in a solid zinc housing Dust box: Metal with 3" screws standard Door Thickness Standard door thickness: 1-3/8" to 2-1/4" (35 mm to 57 mm) conventional cylinder or door bolt; 1-3/8" to 2" (35 mm to 51 mm) FSIC or SFIC Deadbolt 1" housing diameter; 0.81" x 0.62" x 1" throw Backset: adjustable for 2-3/8" (60 mm) or 2-3/4" (70 mm) standard for standard non-fire-rated and optional fire-rated versions; fire-rated deadbolt with 5" fixed backset optional Faceplate: square corner 1-1⁄8" x 2-1/4" (29 mm x 57 mm) standard; circular drive-in style in and round corner options available Strike: 1-1/8" x 2-3/4" (29 mm x 70 mm) with square corners standard; ANSI, round cornered, and thimble options available Certifications ANSI/BHMA ANSI/BHMA A156.36-2020, Grade 2 auxiliary lock (except B581) With SFIC interchangeable core cylinders: Grade 3 ADA ADA compliant thumbturn designs UL/cUL Available UL 10C and CAN/ULC-S104 listed (except B562) 3-hour fire rated as auxiliary locks Letter F and UL symbol on latch front indicate listing UL 10B listed for neutral pressure doors UL 437 listed when using Primus high-security UL 437 cylinder California Fire Code Meets Building Code requirements BAA/TAA Meets BAA (Buy American Act) Keying Options Patented Everest 29™ keyways available in Conventional and FSIC formats Everest 29™ S keyways include S123 (default keyway) Everest 29™ T restricted keyways Everest 29™ R restricted keyways as SL cylinders with the same A2 pinning style of an SFIC cylinders Everest 29™ keyways gain restricted, geographic exclusivity in a Primus XP cylinder Everest 29™ Primus UL 437 high security cylinders are available in Conventional format only Patented Everest 29™ keyways available in Small Format Interchangeable Cores (SFIC) Everest 29™ R restricted keyway family Classic open keyways available in Conventional and FSIC formats Schlage Classic Obverse open keyways, including Schlage C Classic Obverse keyways gain patent protection and restricted, geography exclusivity in a Primus RP cylinder Master Keying Factory master keying available Learn More Allegion Interactive Key Systems Chart can help you understand the value of layered key system security and its application for your space, building or campus. Downloads & Resources Category Information Schlage B Series Catalog Product Information Schlage B Series Data Sheet B500 Series Cut Sheet Schlage Indication Trims Data Sheet Allegion Commercial Warranty Related Product Information Schlage Key Systems, Cylinders and Keys Catalog Allegion Antimicrobial Finish Technical resources Schlage B Series Service Manual Schlage B500 Series Templates Index Schlage B500-Series Installation Instructions Schlage B-Series and D-Series Door Preparation Instructions Schlage B571, B581, B581F Installation Instructions Schlage B580, B580F Installation Instructions Schlage B Indicator Installation Instructions Schlage B-Series and D-Series Interchangeable Cylinder Assembly Instructions Schlage Triple Option Adjustable Deadbolt Installation Instructions Additional information Don't see the document you're looking for? Visit the Document Library for the full selection. In accordance with California PROP65 - WARNING: Cancer & Reproductive Harm P65Warnings.ca.gov Technical Support Videos Allegion 101 Secure the Door: Intro to Schlage Cylinders, Keys, and Key Systems Access Control & Security Solutions Training
