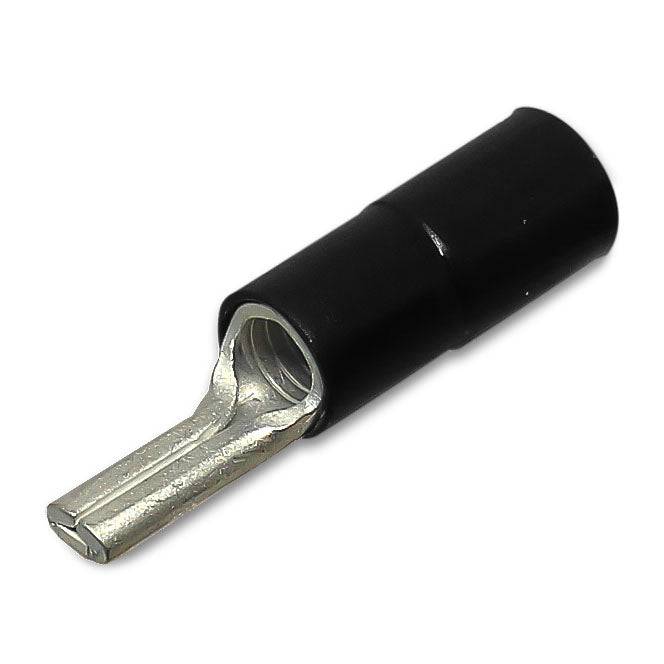

PTNYB16-13B - 6 AWG Nylon Insulated Pin Terminals, 13mm Pin, Black, 25 Pieces

Pin terminals offer quick and easy connections in applications where set screws or clamps are used to make electrical contact with the wire. Dimensions & Features: Wire Size: 6 AWG Color: Black Terminal Insulation: Nylon Terminal Material: Tin-Plated Copper T: 1.2mm (0.04") L: 37.0mm (1.45") F: 13.0mm (0.51") E: 20.9mm (0.82") W: 5.5mm (0.22") D: 10.6mm (0.417") D1: 5.8mm (0.23") Max Temperature Rating: 105°C Max Voltage Rating: 600 Volts UL Recognized: No CE Certified: Yes RoHS Compliant: Yes Product Drawing: Cross References Cross Reference Parts: None Documents Click to view product spec sheet: Videos Check out our YouTube channel!
