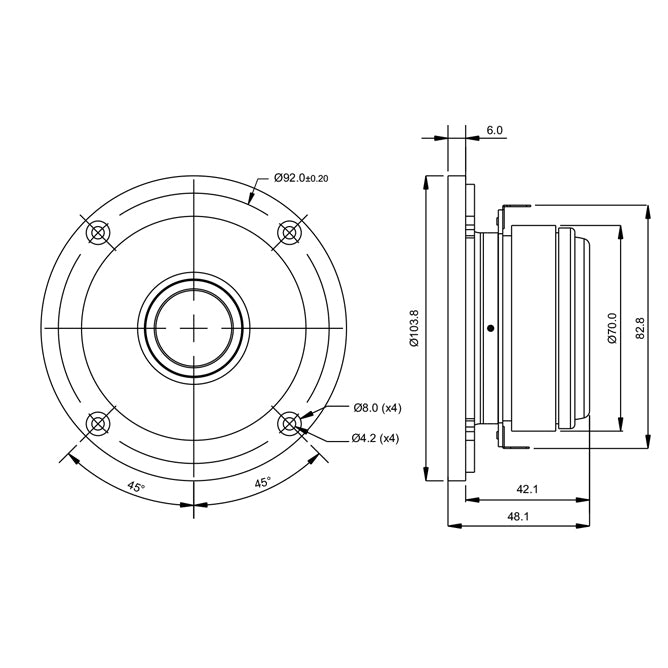

SB Acoustics SB26STWGC-4 Tweeter

<h2><strong><img src="https://cdn.shopify.com/s/files/1/0809/2387/files/SB_main_logo_480x480.jpg?v=1626778525" alt="SB Acoustics logo"></strong></h2> <p><strong><span style="color: #ff2a00;">UK STOCK ITEM</span></strong></p> <p>The SB26STWGC-4 is a 26mm soft dome tweeter from SB Acoustics featuring a solid aluminium horn loaded faceplate / waveguide for improved air coupling and efficiency resulting in a high output of 93dB.<br></p> <h3>Key Features:</h3> <ul> <li>Copper capped pole piece for reduced voice coil inductance and minimum phase</li> <li>Non-reflective rear chamber with optimised damping for improved dynamics</li> <li>Flow optimised vented pole piece for optimum coupling to rear chamber</li> <li>Fine weave soft fabric dome for smooth frequency response</li> <li>Saturation controlled motor system for low distortion</li> <li>CCAW voice coil for low moving mass</li> <li>Long life silver lead wires</li> <li>Low resonance frequency</li> </ul> <h4>Basic parameters:</h4> <table width="100%"> <tbody> <tr> <td>Resonant frequency (fs)</td> <td>780 Hz</td> <td>Nominal impedance (Zn)</td> <td><strong>4 Ω</strong></td> </tr> <tr> <td>Effective diaphragm diameter</td> <td>26mm</td> <td>DC resistance (Re)</td> <td>3.2 Ω</td> </tr> <tr> <td>Ferrofluid ? Y/N</td> <td>Yes<br> </td> <td>Max power handling</td> <td>120 W</td> </tr> <tr> <td>Recommended crossover</td> <td>2.6kHz/12dB</td> <td>Faceplate diameter</td> <td>100mm<br> </td> </tr> <tr> <td>Sensitivity (2.83V/1m)</td> <td>93dB</td> <td>Cutout hole diameter</td> <td>84mm<br> </td> </tr> </tbody> </table> <h4>Here's the full datasheet:</h4> <p style="text-align: left;"><a title="SB Acoustics SB26STWGC-4 datasheet" href="https://cdn.shopify.com/s/files/1/0809/2387/files/SB26STWGC-4.pdf?v=1626860792" target="_blank"><img style="float: none;" src="//cdn.shopify.com/s/files/1/0809/2387/files/PDF_data_icon_medium.jpg?3384343814914157156" alt=".pdf link"></a></p>
