WES PRS7 3HP Pump Start Relay with 10AMP Plug up to 2.2kW 240v Pumps

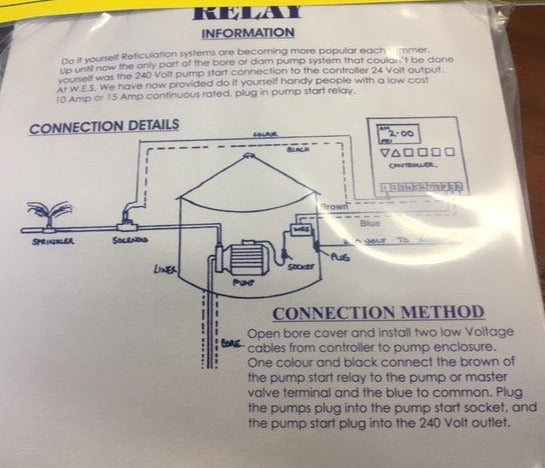

WES PRS7 Pump Start Relay with 10AMP Plug up to 3HP 240v Pumps Do it yourself reticulations systems are becoming more popular each summer. Up untill now the only part of the bore or dam pump system that couldn't be done yourself was the 240v pump start connection to the controller 24v output. CONNECTION METHOD Open bore cover and install the two low voltage cables from the controller to pump enclosure. One colour and black black connect the brown of the pump start relay to the pump or master valve terminal and the blue to common. Plug the pumps plug into the pump start socket, and the pump start plug into the 240v outlet. SPECIFICATIONS Contact rating: 25 AMP Continuous Motor rating: 3HP - 2400 Watt Control voltage: 24vac Switched voltage: 240v 50 Hz Bracket supplied for mountin
