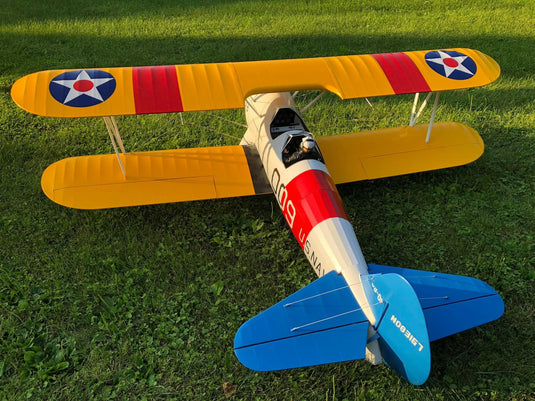

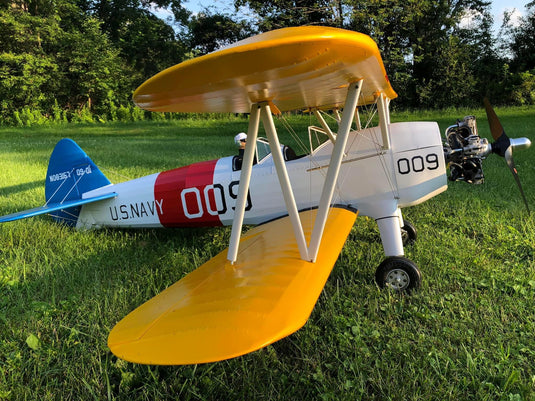

1/3 Scale Stearman

Our 33% scale Stearman has been designed for those who want the very best. Our Ultimate Series™ kits redefine the concept of a complete kit. All hardware items are included, absolutely everything - socket head bolts, aircraft lock nuts, Kwik-Links, threaded rods, scale fittings, etc. A separate plan details all the scale pinking tape and rib stitching to make your model a masterpiece. The complete step-by-step photo illustrated 56 page instruction book covers not only the basic construction, but also shows how to accomplish all scale details right down to panel lines and rivet detail in the cowl. The landing gear is not only scale in detail, but functional as well with working "oleo struts". To complete the gear, scale tail and main wheels are included as well. Type                                                    1/3 scale 2-place Military / Civil Biplane Wing Span                                          116 inches top, 111 inches bottom Wing Cord                                          18 inches both wings Wing Area                                          3617 Sq. inches Tail Span                                             46 inches Airfoil                                                 Semi-Symmetrical Wing Loading                                     25-1/2 ~ 32 Oz / Sq. Foot. Flying Weight                                     40 ~ 50 Lbs Fuselage length                                   92 inches Height                                                 36 inches (flight ready) Height  of  Rudder                              24 inches (tail wheel to tip) Engine Size                                         4.3 to 15.2 Cubic inch (70 to 250cc Moki Radial Radio Gear                                          4-Channel W/5 Servos min. 150 Oz Torque min. Cowl Diameter                                   13-1/2”   Kit includes Rolled Full Size Plans & Photo Instructions. Complete Hardware package (including all push rods and cables). Complete interior kit (includes seats and instrument panel) Scale aluminum landing gear W/ functional coil spring suspension and wheels. Scale leaf spring tail wheel assembly W/wheel Scale “pull, pull” rudder control system W/ bell crank and cables Spun Aluminum Cowl Aluminum and ABS plastic fairings, covers and “boot” cowl Fully functional flying and landing wires W/ all fittings. Scale 3-View Drawings.   Items Needed to Complete Covering material (5, 5-meter rolls Oratex recommended) Paint, Engine, and Radio, Notes Center of Gravity                8-3/4 inch back from leading edge of top wing
