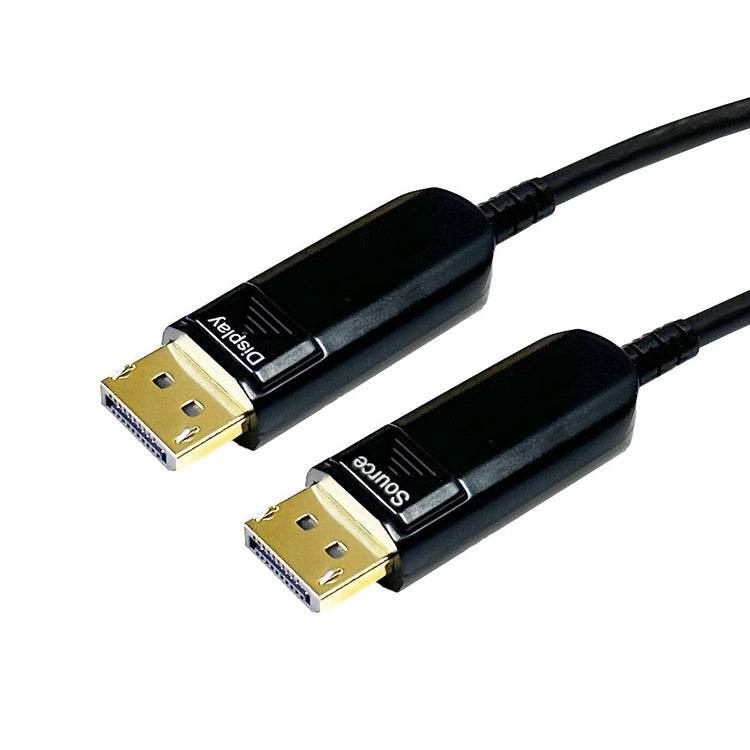

DisplayPort 8K@60Hz AOC Active Optical Cable - 40Gbps V2.0Cable - CMP Plenum Rated

Overview This active optical DisplayPort cable is plenum rated and consists of a DisplayPort male connector on both ends. The cable has a built-in signal booster chipset which supports DisplayPort 2.0 and provides a wide range of features in a compact, lightweight form-factor. These cables are fully HDCP 1.4 / 2.2 compliant and supports signals with data rates up to 40 Gbps (HBR3). It is typically used to connect a DisplayPort source such as a PC or laptop to a monitor and supports full 8K Ultra HD resolution at 60Hz (4:4:4) up to 100 meters. This active optical DP cable is directional. Each end of the cable is marked "Source" and "Display" to indicate the direction of the signal flow. Always test the cable before permanently installing in a wall or ceiling to be sure that the signal flow is correct and for device compatibility. Feature External power not required Hybrid optical cable with fiber and copper wire Plug and Play Support computer resolutions to 8K@60Hz with 40Gbps bandwidth Extend DisplayPort Signals Over Optical Cable These cables are plenum rated and constructed from both copper and optical fiber. They feature a built-in booster chipset ideal for maintaining 8K Ultra HD resolution and ensure a full 40Gbps bandwidth with no signal loss over longer distances. Optimum Performance and Easy Installation These cables utilize AOC technology which make them more flexible and thinner than traditional long-length DisplayPort cables, making them easier to install. The transmission signal is transferred over fiber optic cable which eliminates EMI/RFI interference, maintaining a high level of performance even in high interference environments.     Application Specifications Physical Characteristics Color Black Connector Plating Gold Shell Material Zinc-Alloy Cable Specs Fiber Optic 50/125um multimode / Copper Cable Diameter 4.8mm Shielding 75% Braid + 100% Aluminum-Mylar Foil Jacket Fire Rating CMP Jacket Material PVC Strain Relief Molded PVC Connectors Connector A DisplayPort Male Connector B DisplayPort Male Performance Resolution Ultra HD 8K @ 60Hz Chroma Sampling 4:4:4 Bandwidth 40Gbps, 8.1 Gbps per channel Supported Distance 100m Support HBR3, HDCP HDCP Compliant Compliant, 1.4 / 2.2 DisplayPort Version v2.0 Approvals c(UL)us Compliant, Cable CE Compliant FCC Compliant Environmental RoHS Compliant Reach Compliant Conflict Minerals Compliant Packaging Information Warranty 3 Year Warranty Cable Weights 15ft 25ft 35ft 50ft 75ft 100ft 150ft 0.50 lbs (0.22 kg) 0.70 lbs (0.32 kg) 0.80 lbs (0.36 kg) 1.05 lbs (0.47 kg) 1.50 lbs (0.68 kg) 2.65 lbs (1.20 kg) 3.50 lbs (1.58 kg) Spec Sheets Download attachment REACH Certificate RoHS Certificate
